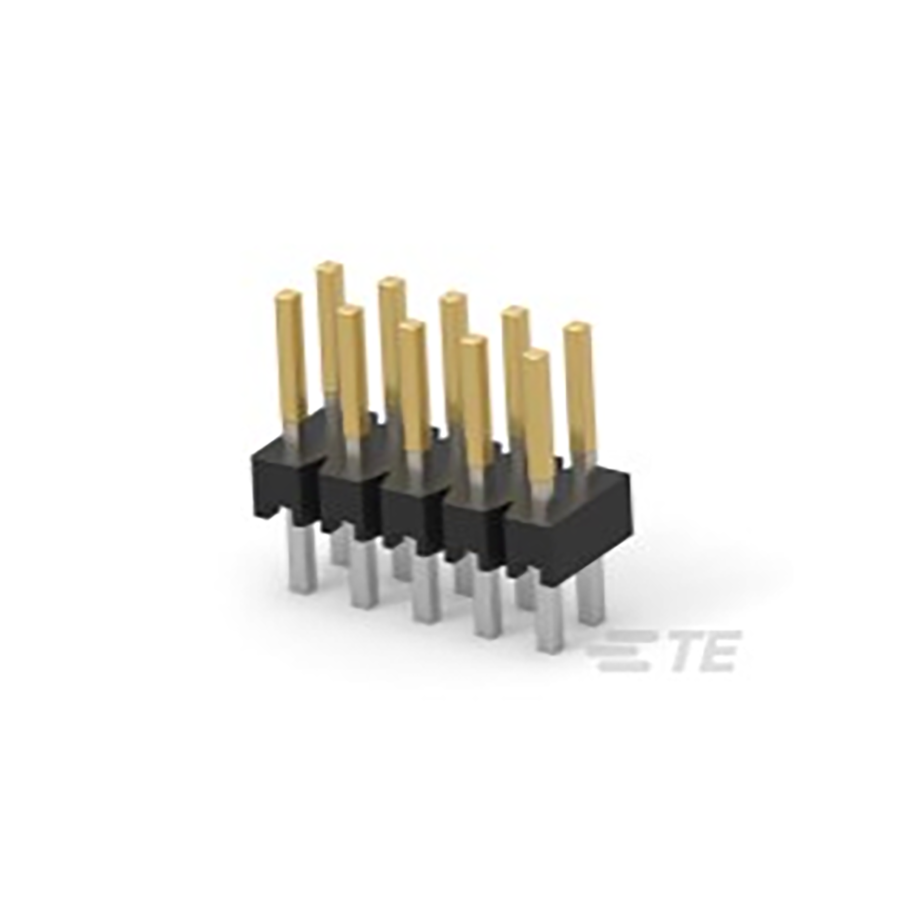

5-146257-5
Manufacturer:
TE Connectivity
Mfr.Part #:
5-146257-5
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.29 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 750 V |
| Depth | 4.88 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold |
| Lead Length | 3.048 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 30 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.5748 mm |
| Contact Gender | Male |
| High Temperature Housing | Yes |
| Mating Post Length | 5.842 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 3.05 mm |
Stock: 3232
Distributors
pcbx
pcbxUnit Price$0.65060
Ext.Price$0.65060
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.65060 | $0.65060 |
| 10 | $0.64960 | $6.49600 |
| 25 | $0.64860 | $16.21500 |
| 50 | $0.64760 | $32.38000 |
| 100 | $0.64660 | $64.66000 |
| 300 | $0.64561 | $193.68300 |
| 500 | $0.64462 | $322.31000 |
| 1000 | $0.62581 | $625.81000 |
